HP Series 3 Pro 23.8-inch FHD Monitor - 324pv (9U5C1AA)

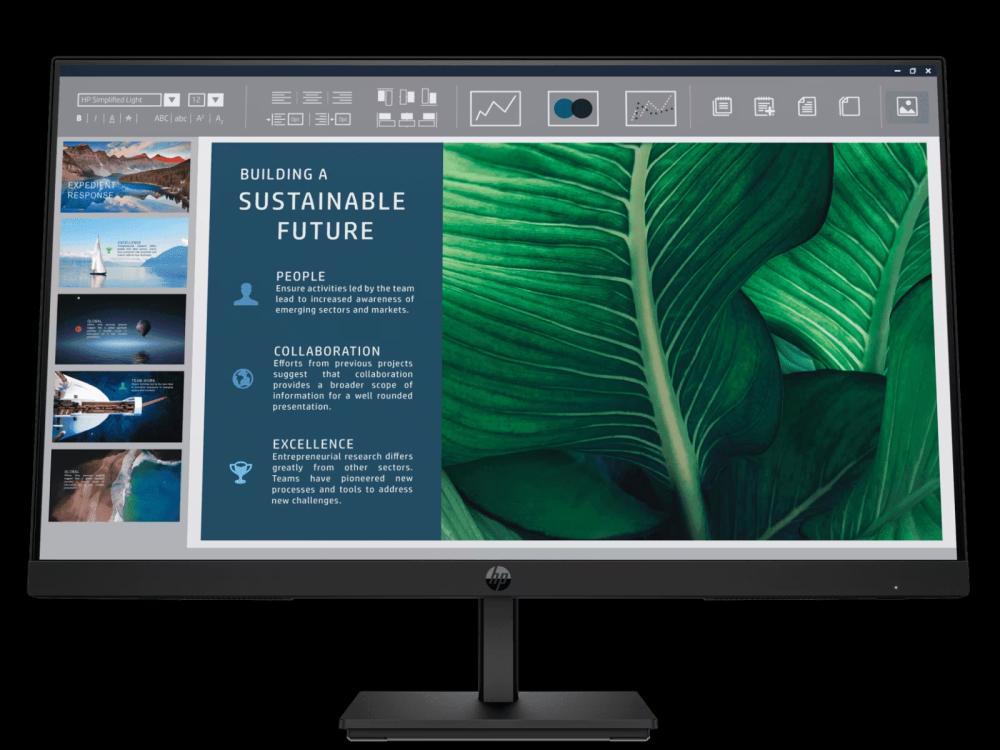

HP Series 3 Pro FHD Monitor- 324pv Front 1. Power Button 2. Power LED c08982818 — DA17347— Worldwide — Version 3 — May 28, 2025 Page 1 QuickSpecs HP Series 3 Pro FHD Monitor- 324pv Technical Specifications HP Series 3 Pro FHD Monitor- 324pv Back 1. 2. 3. Joypad OSD button Security Cable Slot Power Connector 4. 5. HDMI 1.4 Port VGA Port c08982818 — DA17347— Worldwide — Version 3 — May 28, 2025 Page 2 QuickSpecs HP Series 3 Pro FHD Monitor- 324pv Technical Specifications c08982818 — DA17347— Worldwide — Version 3 — May 28, 2025 Page 3 Model: 9U5C1AA Panel Specifications Display Size (Diagonal) 60.5 cm (23.8") Viewable Diagonal Size 60.47 cm (23.8”) Panel Technology VA Curvature Flat Max Refresh Rate 100 Hz Native Resolution FHD (1920 x 1080) Panel Bit Depth 8 bit (6 bit + FRC) Aspect Ratio 16:9 Brightness (Typical) 250 nits Display Contrast Ratio (Static) 3000:1 Display Contrast Ratio (Dynamic) 8M:1 Flicker Free Yes (TÜV certified) Pixel Pitch 0.2745 x 0.2745 mm Pixels Per Inch (PPI) 93 PPI Display Colors Up to 16.7 million colors supported* *Number of colors thru A-FRC technology. Backlight Lamp Life Minimum (To Half Brightness - In Hours) 30,000 hours Blacklight Type Edge-lit, WLED Screen Treatment Anti-glare Hardness 3H Haze 25% Response Time (Typical) 5ms GtG (with overdrive) Horizontal Viewing Angle (Typical Cr>10) 178° Vertical Viewing Angle (Typical Cr>10) 178° Panel Active Area Metric (W X H) 52.7 x 29.65 cm Panel Active Area Imperial (W X H) 20.75 x 11.67 in NOTE: Performance specifications represent the typical specifications provided by HP's component manufacturers; actual performance may vary either higher or lower. Color NTSE 72% Color Management Color Space RGB 4:4:4, YCBCR 4:4:4, YCBCR 4:2:2 RGB Channel Adjust Yes, Gain Default Color Temperature Standard (6500K) Monitor Specifications Bezel Type 3-sided borderless Color Of Stand Black Color Of Head Black Tilt -5 to +23° Vesa Mounting 100 mm x 100 mm Security Lock Standard Security Lock Slot Detachable Stand Yes Warranty 3/3/0 for LA, NA, EMEA, APJ (3/3/3 in select APJ Countries) QuickSpecs HP Series 3 Pro FHD Monitor- 324pv Technical Specifications Low Blue Light Management Software On Screen Display (OSD) On Screen Display Native Resolution Maximum Resolution Preset Graphic Modes/Supported Resolutions Minimum Vertical Scan Rate Maximum Vertical Scan Rate Minimum Horizontal Scan Rate Maximum Horizontal Scan Rate Maximum Pixel Clock User Programmable Modes User-Assignable Function Buttons Languages Yes, HP Eye Ease (TÜV Low Blue Light Hardware Solution certified) HP Client Management Script Library (CMSL)* HP Display Center** * The Client Management Script Library must be downloaded to the connected PC to run CMSL commands. Some limitations may apply to legacy displays. Visit support.hp.com to download HP CMSL. ** Host PC requires Windows 10 and above. HP Display Center is available on the Microsoft store. Brightness+, Image, Color, Input, Power, Menu, Management, Information, Exit FHD (1920 x 1080) * DisplayPort™ 1.2 or HDMI 1.4 required to drive panel at its native resolution. The video card of the connected PC must be capable of supporting 1920x1080at 100 Hz with 8-bit color using one HDMI or DisplayPort™; 1920x1080 at 60 Hz with 8-bit color using one VGA. FHD (1920 x 1080 @ 100 Hz) 640 x 480 @ 60Hz 640x480@75Hz (Digital inputs only) 720 x 400 @ 70 Hz 800 x 600 @ 60 Hz 800x600 @ 75Hz (Digital inputs only) 1024 x 768 @ 60 Hz 1024 x 768 @ 75 Hz (Digital inputs only) 1280 x 720 @ 60 Hz 1280 x 800 @ 60 Hz 1280 x 1024 @ 60 Hz 1280 x 1024 @ 75 Hz (Digital inputs only) 1440 x 900 @ 60 Hz 1600 x 900 @ 60 Hz 1680 x 1050 @ 60Hz 1920x1080 @ 50Hz (Digital inputs only) 1920 x 1080 @ 60Hz 1920x1080 @ 75Hz (Digital inputs only) 1920x1080 @ 100z (Digital inputs only) 50 Hz VGA 60 Hz, HDMI 100 Hz 30 kHz HDMI: 115 kHz, VGA:80 kHz HDMI:300MHz, VGA:170MHz Yes, VGA 11, HDMI 18 Yes, 4 (VGA: 6 options, HDMI: 5 options) 11 (English, Spanish, German, French, Italian, Netherlands, Portuguese, Japanese, T-Chinese, S-Chinese and Russian) c08982818 — DA17347— Worldwide — Version 3 — May 28, 2025 Page 4 QuickSpecs HP Series 3 Pro FHD Monitor- 324pv Technical Specifications c08982818 — DA17347— Worldwide — Version 3 — May 28, 2025 Page 5 Connector Types HDMI 1 HDMI 1.4 HDCP Yes, HDMI VGA 1 VGA Special Features Switch Monitor Power button Next Active Input / Up button Brightness / Down button Information / Left button Color / Right button Menu / Enter button User Presets 11(VGA)/18(HDMI) Power & Operating Specs Power Supply Internal Power Source 100 – 240 VAC 50/60 Hz Power Consumption- Max 30 W Energy Saving/Stand By Mode 0.5 W Power Consumption - Typical 20 W Energy Star Data Operational Mode at 100 VAC 14.3 W Operational Mode at 115 VAC 14.3 W Operational Mode at 230 VAC 14.3 W EU Energy Efficiency Class (ErP LOT-5) On-mode Power Consumption for Standard Dynamic Range (SDR) 14.4 W EU Energy Efficiency Class (ErP LOT-5) ErP LOT5 Energy Efficiency Class for Standard Dynamic Range (SDR) Operating Conditions Operating Temperature - Celsius 5~35°C Operating Temperature - Fahrenheit 41– 95°F Non-Operating Temperature - Celsius –40 – 65°C Non-Operating Temperature - Fahrenheit –40 – 149°F Operating Humidity 20 – 80% Relative Humidity (non-condensing) Non-Operating Humidity 5~95%RH Operating Altitude Metric 0~5,000m (16,400 ft.) Non-operating Altitude Metric 0~12,192m (40,000 ft.) Operating Altitude Imperial 0~16,400ft Non-operating Altitude Imperial 0~40,000ft Certifications and Compliances Low Halogen Yes Agency Approvals and Certifications WW application UAE/EUP Lot6 and Lot26/ Eup Lot5/ Energy Star / TCO Edge/ TCO / Australia MEPS/ Vietnam MEPS/ CEC/ Bauart/ China CCC/ cTUVus/ Korea KC/ Korea KCC/ Korea eStandby/ CB(62368-1&60950)/ ISO9241-307/ CE/FCC/VCCI/RCM/C-TICK/IC/ India BIS/ Taiwan BSMI/ Mexico NOM/ South Africa Energy Efficiency/ Argentina SMark/ Singapore PSB/ Cambodia ISC/ EAC//Mexico Energy QuickSpecs HP Series 3 Pro FHD Monitor- 324pv Technical Specifications c08982818 — DA17347— Worldwide — Version 3 — May 28, 2025 Page 6 /CEL/Ukraine(DOC&COC)/NRCS/Ukraine energy/PSE/SEPA/TGM/ Works with Chromebook* *This product works with devices capable of running the latest version of ChromeOS and has been certified to meet Google's compatibility standards. Google is not responsible for the operation of this product or its compliance with safety requirements. Chromebook and the Works With Chromebook badge are trademarks of Google LLC. Microsoft WHQL Certification Windows 11, Windows 10 ENERGY STAR® Certified Yes EPEAT® Registered Regions need to verify by country EPEAT® Gold in United States* *Based on US EPEAT® registration according to IEEE 1680.12018 EPEAT®. Status varies by country. Visit www.epeat.net for more information. China Energy Label CEL Grade 2 TCO Certified Edge Yes TCO Certified Yes SmartWay Transport Partnership - NA only Yes (NA sku) Contains Recycled Plastics Contains Recycled Plastics 85% ITE-derived closed loop plastic* *ITE Derived Closed Loop Plastic percentage is based on the definition set in the IEEE 1680.1-2018 standard. Recyclable Packaging (Box, packing materials) Outside Box is 100% sustainably sourced and recyclable* Molded Paper Pulp Cushion inside box is 100% sustainably sourced and recyclable** *100% outer box packaging is made from sustainably sourced certified and recycled fibers. ** Molded pulp cushions are made from 100% recycled wood fiber and organic materials. Metric Imperial Unit Product/Package Specifications Product Dimensions (Unpacked with stand) (W x D x H) 53.89 x 18.05 x 39.79 cm 21.22 x 7.11 x 15.67in Product Dimensions (Packed) (W x D x H) 59.5 x 12.4 x 39.1 cm 23.43 x 4.88 x 15.39 in Display Head Dimensions (Unpacked without stand) (W x D x H) 53.89 x 5.143 x 32.36 cm 21.22 x 2.02 x 12.74 in Base Area Footprint (w x d mm) 174 x 170 mm 6.85 x 6.69 in Bezel Measurements Top: 1.5 mm Sides: 1.5 mm Bottom: 20.2 mm Top: 0.06 in Sides: 0.06 in Bottom: 0.8 in QuickSpecs HP Series 3 Pro FHD Monitor- 324pv Technical Specifications c08982818 — DA17347— Worldwide — Version 3 — May 28, 2025 Page 7 Product Weight (Unpacked with stand) 3.56 kg 7.84 lb Product Weight (Packed) 5.54 kg 12.22 lb Product Weight (Head Only) 3.17 kg 6.99 lb Pallet Information Pallet Dimensions (L x W x H mm) Slip Sheet: 1200x1000x1967 mm (20 ft &40 ft) Slip Sheet: 1200 x 1000 x 2358 mm (40 HQ) Pallet: 1200x1000 x 2100 mm (20 ft & 40 ft) Pallet: 1200 x 1000 x 2494 mm (40 HQ) Slip Sheet: 47.24 x 39.37 x77.44 inch (20 ft &40 ft) Slip Sheet: 47.24 x 39.37 x 92.83 inch (40 HQ) Pallet: 47.24 x39.37 x 82.68 inch (20 ft & 40 ft) Pallet: 47.24 x 39.37 x 98.19 inch (40 HQ) Pallet Total Weight Slip Sheet: 475kg (20 ft & 40 ft) Slip Sheet: 569 kg (40 ft HQ) Pallet: 485.62kg (20 ft & 40 ft) Pallet: 579.38 kg (40 ft HQ) Slip Sheet: 1047.2 lb (20 ft & 40 ft) Slip Sheet: 1254.43 lb (40 ft HQ) Pallet: 1070.61 lb (20 ft & 40 ft) Pallet: 1277.31 lb (40 ft HQ) Pallet Layers 5 (20ft/40ft slip sheet & pallet) 6 (40ft HQ slip sheet & pallet) Pallet Product per Layer 16 (slip sheet & pallet) Total Products per Pallet 80 (20ft/40ft slip sheet & pallet) 96 (40ft HQ slip sheet & pallet) Container Load, 20-Foot 800 sets (Slip Sheet and Pallet) Container Load, 40-Foot 1680 sets (Slip Sheet and Pallet) Container Load, 40-Foot HighQ 2016 sets (Slip Sheet and Pallet) What's in the box? AC power cord (1.83m) 5.9ft HDMI 1.4 cable (1.8m) 5.9 ft Quick Setup Poster Warranty User Guide and Warranty Languages User Guide Languages Arabic, Bahasa Indonesia, Bulgarian, Chinese-S, ChineseT, Czech, Danish, Dutch, English, Estonian, Finnish, French, German, Greek, Hebrew, Hungarian, Italian, Japanese, Kazakh, Korean, Latvian, Lithuanian, Norwegian, Polish, Portuguese (Brazilian), Portuguese (Iberian), Romanian, Russian, Serbian, Slovak, Slovenian, Spanish, Swedish, Thai, Turkey, Ukrainian Warranty Languages English US (EN), English AP (EN-AP), English LA (EN-LA), English UK (EN-GB), Arabic (AR) -17x, Bahasa Indonesia (ID), Bosnian (BS), Bulgarian (BG), Chinese-S (CN), Chinese-T (TW), Croatian (HR), Czech (CS), Danish (DA), Dutch (NL), Estonian (ET), Finnish (FI), French Canadian (FC), French European (FR), German (DE), Greek (EL), QuickSpecs HP Series 3 Pro FHD Monitor- 324pv Technical Specifications Hebrew (HE), Hungarian (HU), Italian (IT), Japanese (JA), Kazakh (KK), Korean (KO), Latvian (LV), Lithuanian (LT), Norwegian (NO), Polish (PL), Portuguese, Brazilian (BR), Portuguese, Iberian (PT), Romanian (RO), Russian (RU), Serbian (SR), Slovak (SK), Slovenian (SL), Spanish, Castilian (ES-ES), Spanish, Latin America (ES-MX), Swedish (SV), Thai (TH) Turkish (TR), Ukrainian (UK), Vietnamese (VI) © Copyright 2024 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. Microsoft and Windows are registered trademarks or trademarks of Microsoft Corporation in the U.S. and/or other countries. ENERGY STAR is a registered trademark owned by the U.S. Environmental Protection Agency. c08982818 — DA17347— Worldwide — Version 3 — May 28, 2025 Page 8
